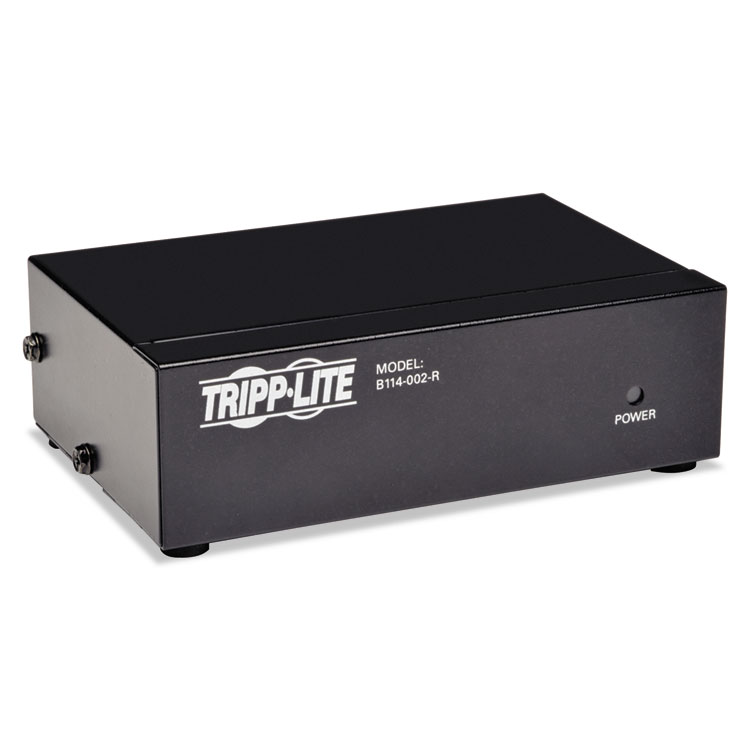

Name: Tripp Lite VGA/SVGA Video 2-Port Splitter
SKU: B114-002-R
Availability: InStock

CABLE,VGA VIDEIO SPLIT,BK

VGA/SVGA Video Splitter with Signal Booster, HD15 M/2xF, 2 Ports

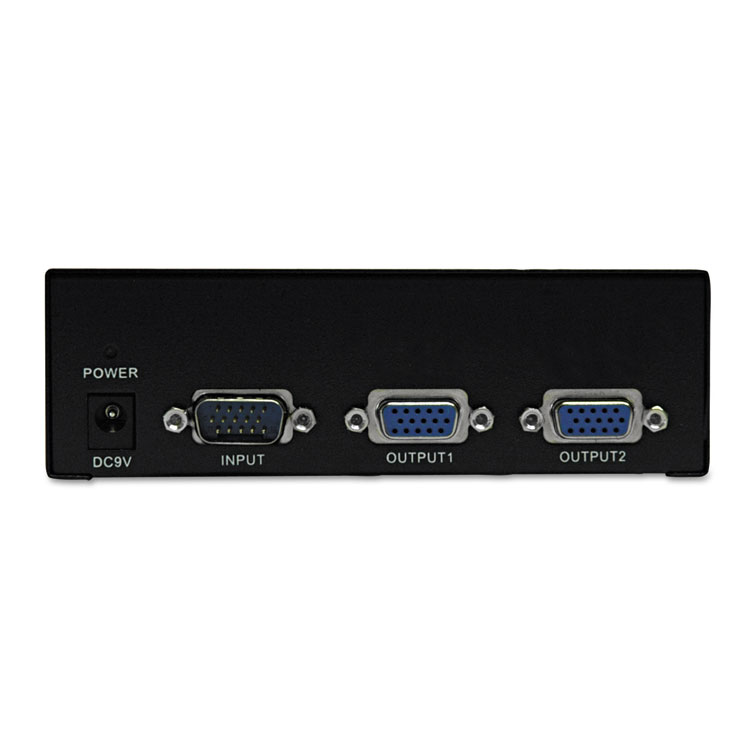

Tripp Lite’s 2-Port VGA/SVGA Video Splitter provides bandwidth support at 350MHZ, allowing simultaneous display of video on 2 monitors. In addition, a built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source. Two standard HD15 female ports are used to connect the monitors, while the a third HD15 male port is used to connect the CPU. The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors. The number of connected monitors can be expanded by cascading up to 3 levels of B114-002-R splitters together. For Use With: Computer and VGA/SVGA Monitors; Connector/Port/Interface: HD15 (Male); Two HD15 (Female); Splitter/Coupler Type: Video Splitter; Color(s): Black.

Notes

Simultaneously display video on 2 VGA/SVGA monitors.
A built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source.
The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors.
Ideal for video presentations or sharing information with multiple users.
Cascade up to 3 levels of B114-002-R splitters together to increase the number of connected monitors.
Provides bandwidth support at 350MHZ, allowing simultaneous display of video on 2 monitors. In addition, a built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source. Two standard HD15 female ports are used to connect the monitors, while the a third HD15 male port is used to connect the CPU. The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors.
Tripp Lite’s 2-Port VGA/SVGA Video Splitter provides bandwidth support at 350MHZ, allowing simultaneous display of video on 2 monitors. In addition, a built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source. Two standard HD15 female ports are used to connect the monitors, while the a third HD15 male port is used to connect the CPU. The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors. The number of connected monitors can be expanded by cascading up to 3 levels of B114-002-R splitters together.
Tripp Lite’s 2-Port VGA/SVGA Video Splitter provides bandwidth support at 350MHZ, allowing simultaneous display of video on 2 monitors. In addition, a built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source. Two standard HD15 female ports are used to connect the monitors, while the a third HD15 male port is used to connect the CPU. The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors. The number of connected monitors can be expanded by cascading up to 3 levels of B114-002-R splitters together.

Specifications

Global Product Type: Splitters/Couplers-Video Splitter
For Use With: Computer and VGA/SVGA Monitors
Connector/Port/Interface: HD15 (Male)
Connector/Port/Interface: Two HD15 (Female)
Splitter/Coupler Type: Video Splitter
Color(s): Black
Pre-Consumer Recycled Content Percent: 0%
Post-Consumer Recycled Content Percent: 0%
Total Recycled Content Percent: 0%
Package_Includes: External Power Supply with NEMA 1-15P Plug; Owner’s Manual
Product_Description: CABLE,VGA VIDEIO SPLIT,BK
Long_Item_Description: VGA/SVGA Video Splitter with Signal Booster, HD15 M/2xF, 2 Ports
Item_Consolidated_Copy: Tripp Lite’s 2-Port VGA/SVGA Video Splitter provides bandwidth support at 350MHZ, allowing simultaneous display of video on 2 monitors. In addition, a built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source. Two standard HD15 female ports are used to connect the monitors, while the a third HD15 male port is used to connect the CPU. The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors. The number of connected monitors can be expanded by cascading up to 3 levels of B114-002-R splitters together. For Use With: Computer and VGA/SVGA Monitors; Connector/Port/Interface: HD15 (Male); Two HD15 (Female); Splitter/Coupler Type: Video Splitter; Color(s): Black.
